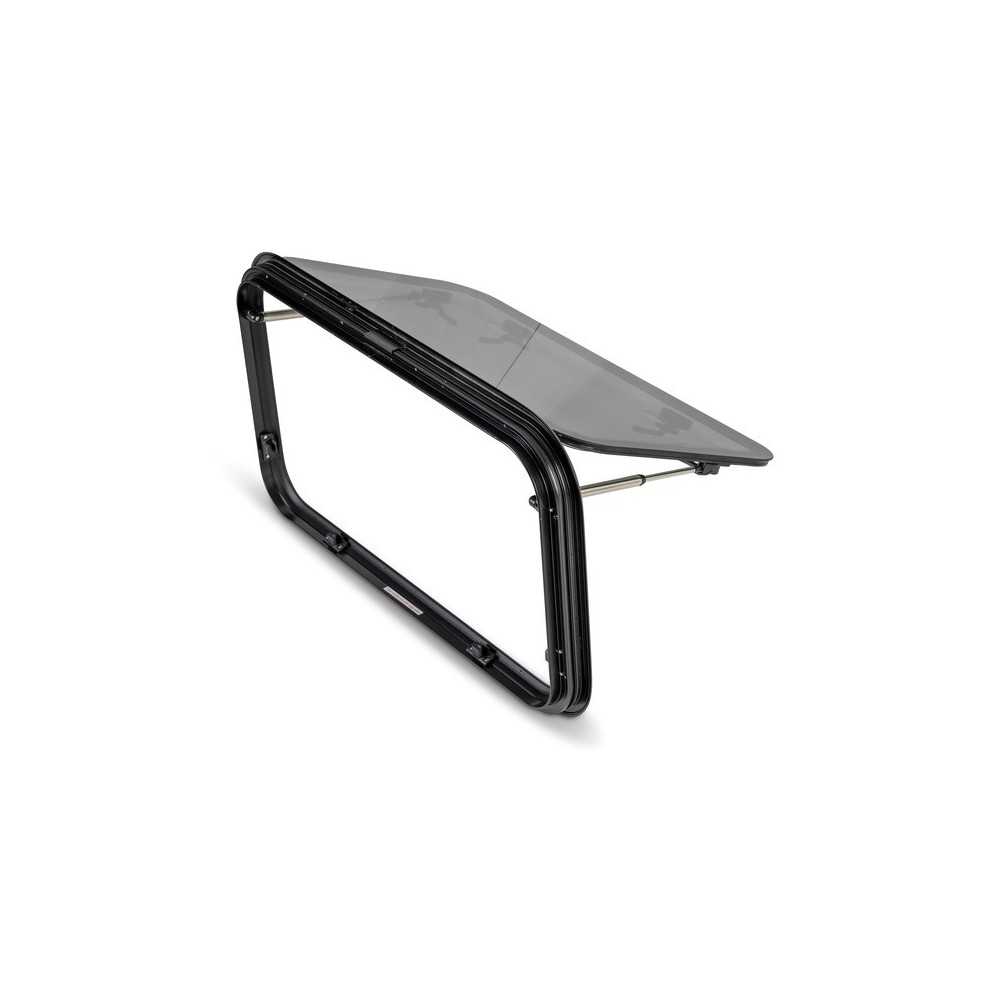

Carbest RW FUSION motorhome window – hinged window combining safety glass and acrylic glass

A fusion of scratch-resistant exterior glass and lightweight acrylic insulating glass:

The high-quality, inwardly curved Carbest RW FUSION windows consist of a combination of tinted real glass and acrylic glass in an aluminium frame.
Double glazing not only offers additional protection, but also excellent insulation in all weather conditions.
The 30% black-tinted glass pane is curved inwards with the double-glazed section, thus closing flush with the window frame from the outside. This pane therefore aligns with the vehicle silhouette without protruding.
The flat windows have no curvature, making them the perfect heat-insulated window for retrofitting to motorhomes, panel vans or semi-trailers with flat walls and upscale fittings.



Product features:

• Scratch-resistant real glass on the outside

• Highly insulating acrylic glass pane on the inside

• Best heat/cold insulation

• High-quality appearance thanks to concealed hinges

• Black aluminium frame with integrated struts offers low thermal conductivity, reduces moisture condensation, reduces energy loss and reduces noise

• Stainless steel stands Made in Germany



Technical data:

• Material glass: Safety glass with acrylic glass
• Opening angle in degrees: min. 50°
• Material frame: Aluminium
• Wall thickness: 30 - 40 mm
• Corner radius window frame: 75 mm
• Without frame curvature: Flat design
• Vehicle type: Panel van
• Can be combined with RW VAN or Seitz S7P

The optional blackout system in the interior frame creates an overall homely atmosphere in the interior. The stepless exhibitors ensure good ventilation in the vehicle.
