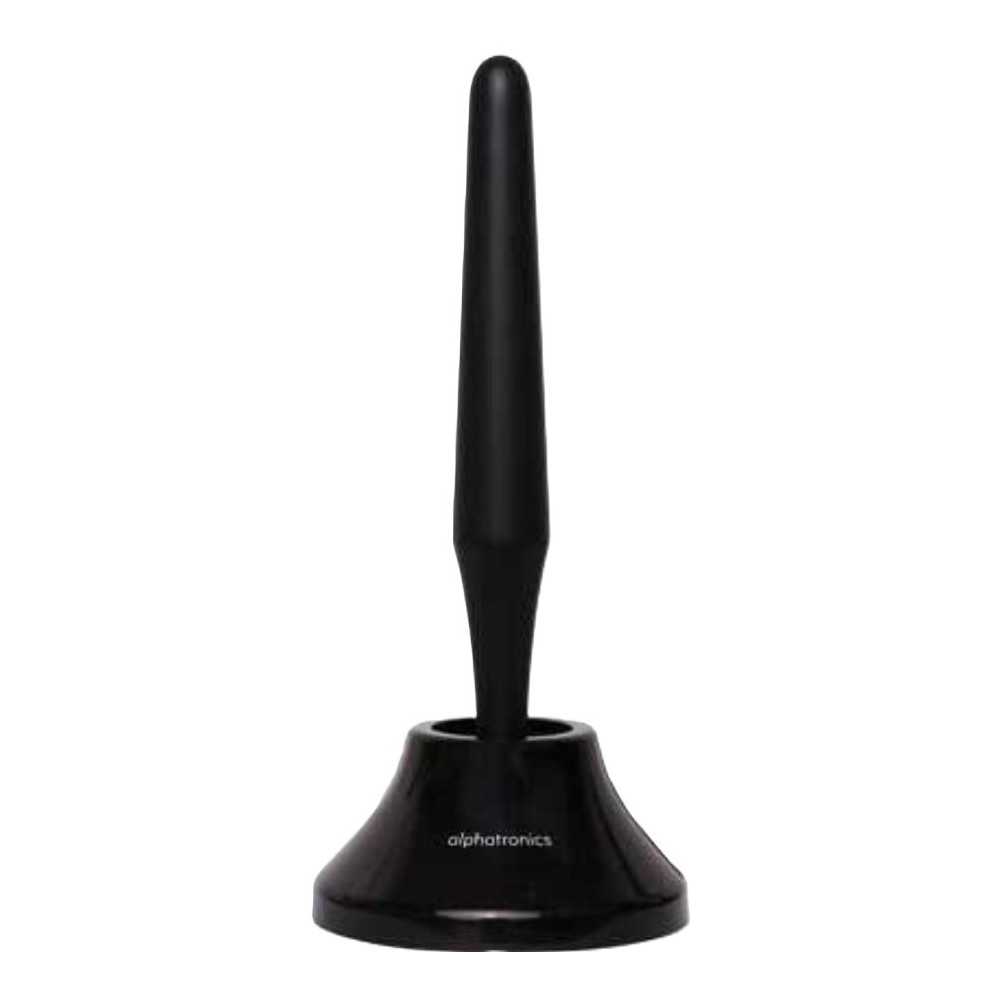

Alphatronics AN-5 DVB-T indoor aerial
Reference: 06-710-010
€23.95
Tax included 7-10 working days
DVB-T antenna AN 5 (for indoor use)
This is a tuned digital antenna for digital satellite television reception.
It is the best solution for reception at home and mobile digital TV reception. The antenna is active and can be used with a TV or set-top box that supports a coaxial cable power supply.
Privacy policy
Delivery conditions
Return conditions
DVB-T Antenna AN 5 (for indoor use)
This is a tuned digital antenna for digital satellite TV reception. It is the best solution for reception at home and for mobile digital TV reception. The antenna is active and can be used with a television or a set-top box that supports power supply via a coaxial cable.
Technical specifications:
Frequency range: UHF 470–790 MHz
Reception range: FM/VHF/UHF
Gain: UHF 24 dB
Output level: 120 dBµv
Output impedance: 75 ohms
Noise level: +/- 3 dB
Gain VHF B3: 20 dB
Gain (UHF): 24 dB
Weight: 0.21 kg
Power supply: 5 V 40 mA, via either the aerial cable or USB 2.0
Dimensions: 66 mm (diameter) x 126 mm (height)
Cable length: 3 m
Power supply:
via DTV set-top box / TV (DC 5 V/40 mA)
Car charger DC 12 V/50 mA
DC battery
Contents:
alphatronics DVB-T antenna AN5
Magnetic base with non-slip coating
3 m connection cable
User manual
06-710-010
