EUFAB - ENDURO Bicycle carrier, sliding (coupling carrier) SD260

For passenger cars, panel vans, motorhomes with trailer coupling



A unique sliding system always allows access to the boot or via the wing doors to the rear of the van - even when the bike carrier is loaded.

The system is so robust and rigid that even e-bikes can be stowed without any problems.

The carrier can be easily moved forwards and backwards and is easy to handle:

The bike carrier does not have to be tilted, but slides gently backwards: this significantly reduces the risk of the bikes falling abruptly towards people.

The ENDURO SD260 is unique with its principle.

All frame holders are also lockable (standard) and thus effectively secure the expensive bicycles against theft.



• Quick-release lock: Yes
• Strap frame holder especially for sensitive frames
• Lockable frame holders: Yes
• Rack lockable: Yes
• Rail type: Aluminium profile rails
• Rail spacing: Approx. 24 cm
• Wheelbase: Max. 130 cm
• Max. Tyre width in the rail: Up to 3.25 inches
• Lighting connection: 13-pin plug
• Material: Aluminium / steel / plastic
• Also suitable for bicycles with oversize and Y-frame
• Suitable for almost all trailer coupling types
• Max. Payload: 60 kg
• Own weight: approx. 20 kg
• For 2 bicycles
• Suitable for e-bikes
• With EG-BE

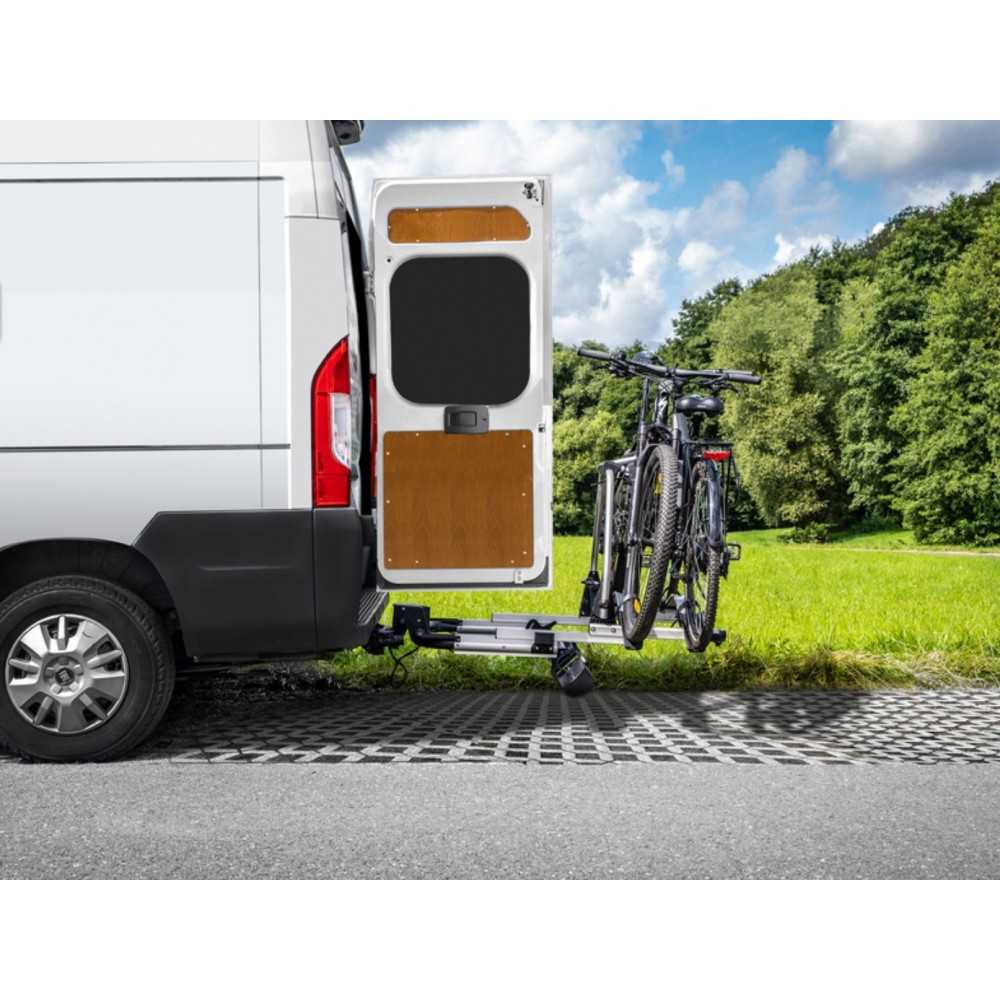

The gullwing doors of the vehicle can be opened conveniently without dismantling the carrier or the bicycles thanks to the innovative sliding system.

Features:



• For transporting bicycles on the trailer coupling suitable for panel vans and motorhomes, family buses, high-roof station wagons with rear wing doors and, of course, also for passenger cars.
• Strap frame holder especially for sensitive frames
• Quick and easy mounting with quick release system
• Also suitable for bikes with oversize and Y frames
• Suitable for almost all trailer coupling types
• With quick release fastener
• With adjustable number plate holder, also suitable for Austria
• Lockable frame holder
• Compact storage dimensions



Technical details:



• Extendable: Sliding rails with approx. 70cm sliding path allows opening of doors up to approx. 85cm wide
• Bike attachment: Removable and lockable strap frame holders, with ratchets
• Rail type: Sturdy aluminium rails with plastic bicycle holders
• Rail spacing: approx. 24 cm
• Lighting connection: 13-pin plug
• Wheelbase: max. 130 cm
• Max. Tyre width in the rail: up to 3.25 inch
• Material: aluminium / plastic / steel
